Products: Options: Core Blow

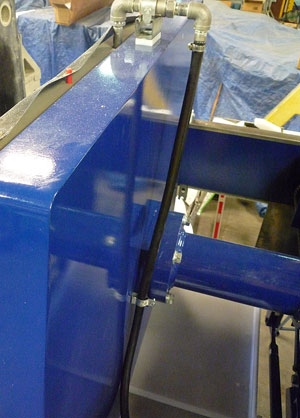

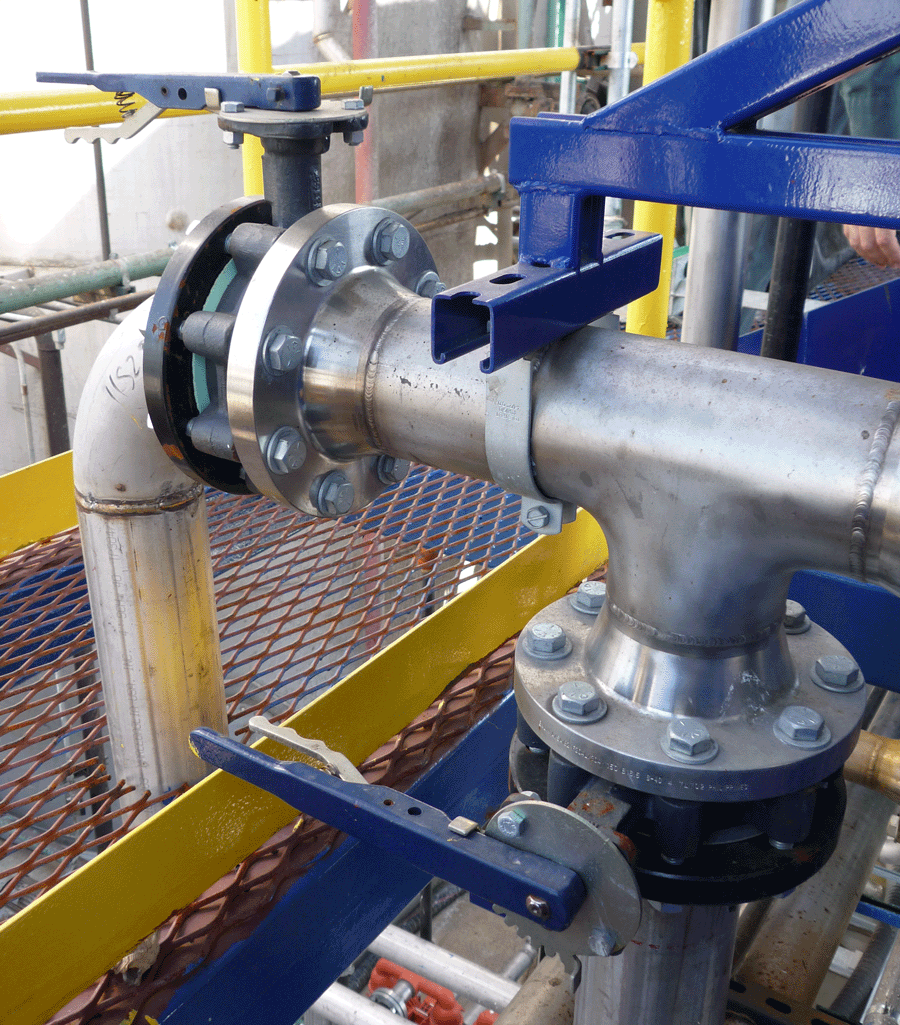

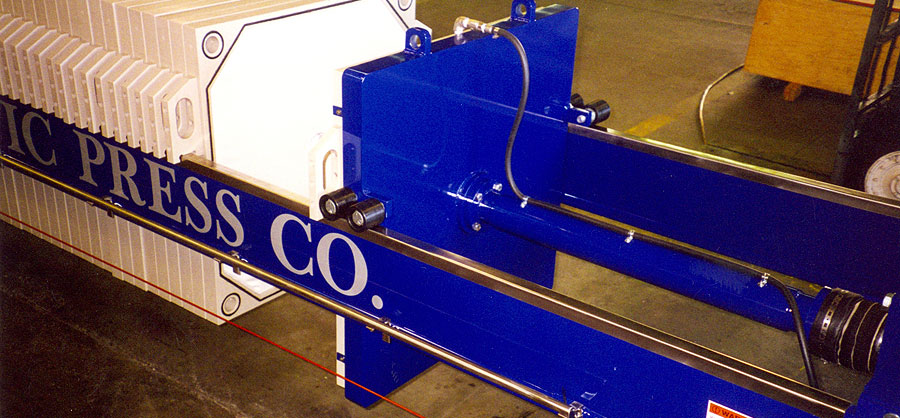

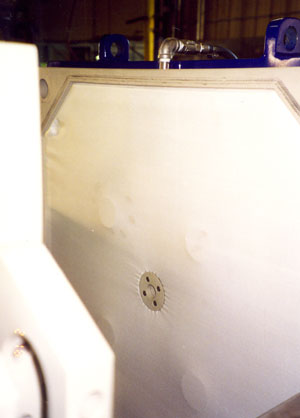

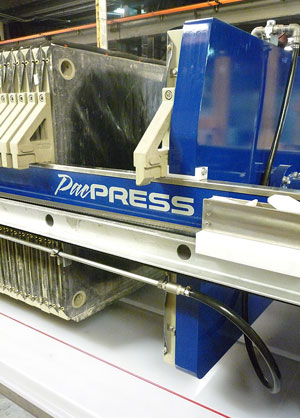

Core blowdown is an optional feature that is used to remove non-filtered fluid from the center of all of the filter plates. This is used so that the excess fluid does not drip into the sludge holding container or onto the cake collection bin. This would wet the already dry filter cake. There are two main components of this option and they can be installed at a later date if desired. The first portion is a tee that must be installed directly in the inlet of the filter press. The second component of a core blowdown system is the core blowdown follower plate.

.

.
